Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine

Place of Origin : Henan, China

Brand Name : Recycle

Certification : CE ISO for Copper Wire Scrap Separator

Price : $16,500.00/sets >=1 sets

Condition : New

Machine Type : Copper Wire Recycling Machine

Weight (KG) : 2000

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2025

Warranty of core components : 1 Year

Core Components : PLC, Motor

Warranty : 1 Year

Key Selling Points : Automatic

Applicable Industries : Manufacturing Plant, Home Use, Construction works

Showroom Location : Algeria, Kyrgyzstan, Nigeria

After-sales Service Provided : Engineers available to service machinery overseas

Name : Copper Wire Scrap Separator

Application : Wire and cable separation

Type : Fully Automatic for Copper Wire Scrap Separator

Product name : Copper Wire Scrap Separator Cable Chopper and Recycling Machine

Capacity : 100-1000 kg/ h for Copper Wire Scrap Separator

Raw material : Home Appliances Wires

Power : 28-95 kw for the Copper Wire Scrap Separator

Function : Recycle Copper Wires

Contact Now

Scrap Copper Wire Recycling Plant
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine

Product Application
The Copper Wire Recycling Machine is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper granules and PVC. This machine can recycle the copper wire which diameter is 0. 3mm-35mm. Automobile electrical wire or the electric wire of car, motorcycle electric wire, computer case wire and communication cable, etc.
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine

FINAL PRODUCTS

Copper Wire Recycling Machine process the waste electric wire and cable into copper and plastic granules. Copper is separated from the plastic, separation efficiency can be 99%. For the copper granule, it can be sold directly or go to further refining. Through our copper electrolysis machine, the copper can be refined into cathode copper in above 99.99% purity. The plastic granules
normally are PVC or rubber material, it can also be sold directly.
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine

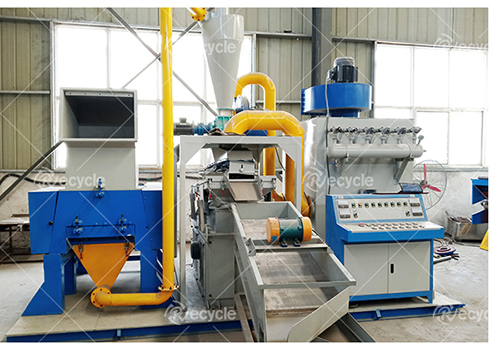

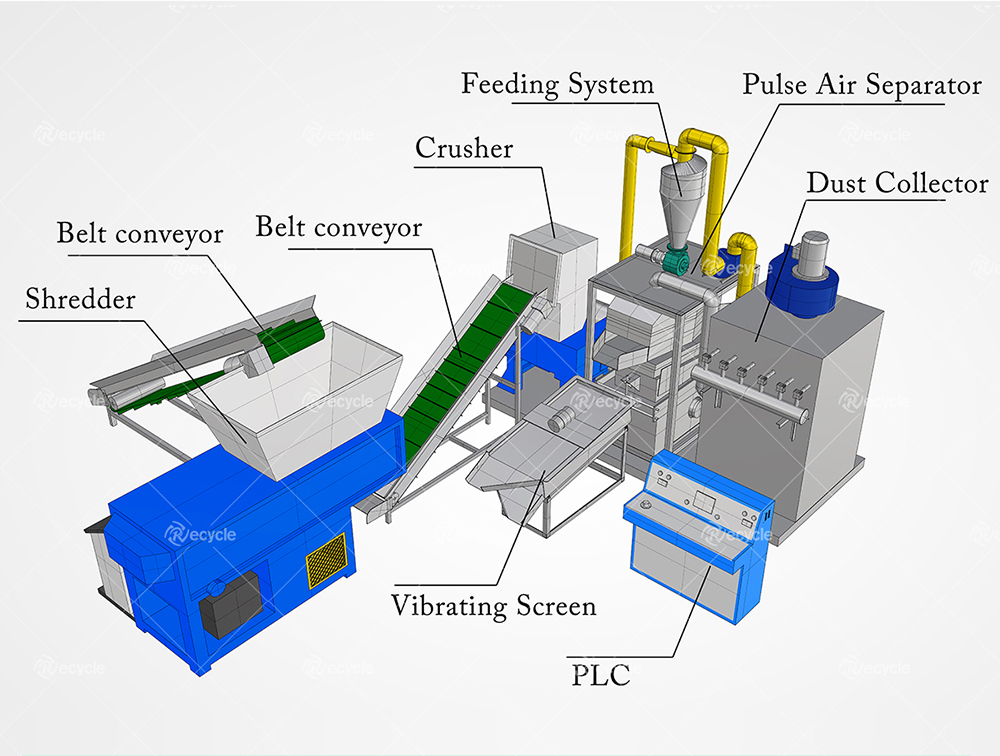

Product Structure
The Copper Wire Recycling Machine is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper rice and PVC. This machine can recycle the copper wire which diameter is 0.3mm-35mm. Automobile electrical wire or the electric wire of car,motorcycle electric wire, computer case wire and communication cable, etc.
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine

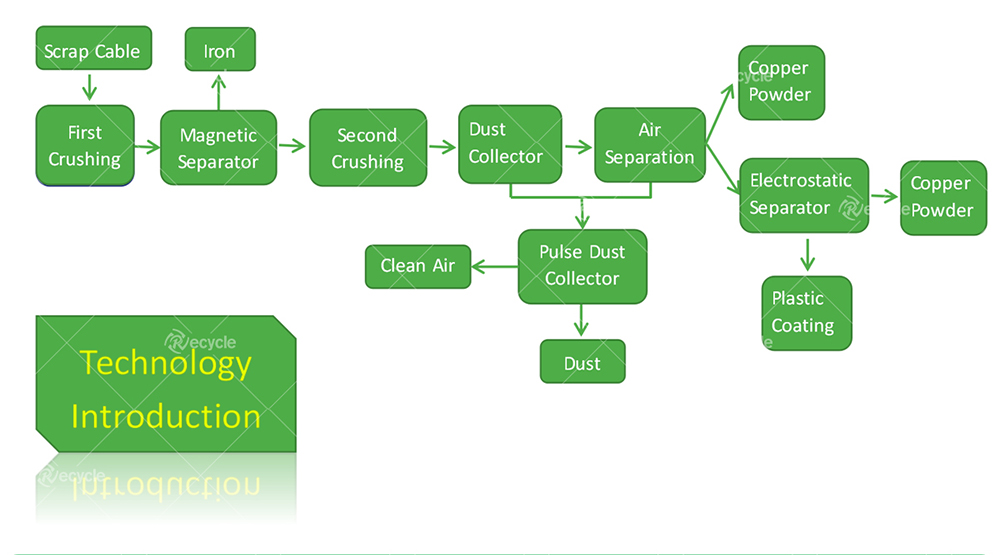

Working Process of Copper
Wire Recycling Machine
1. Put wasted cable into the crusher machine, they will be cut into granules first. during this process, copper and plastic are separated but still mixed together.
2. Then the granules are sent to air separator for separation, according to the gravity difference and through air blow, the copper and plastics are separated success sully and comes out from different sides.

3. At last we collect the separated pure copper and plastic.

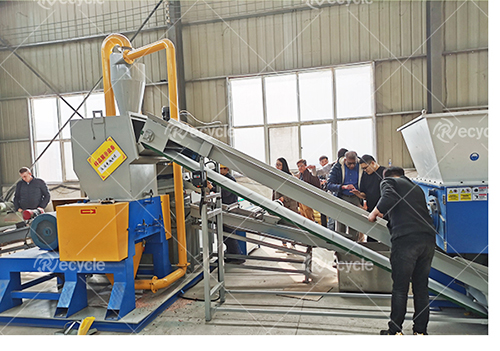

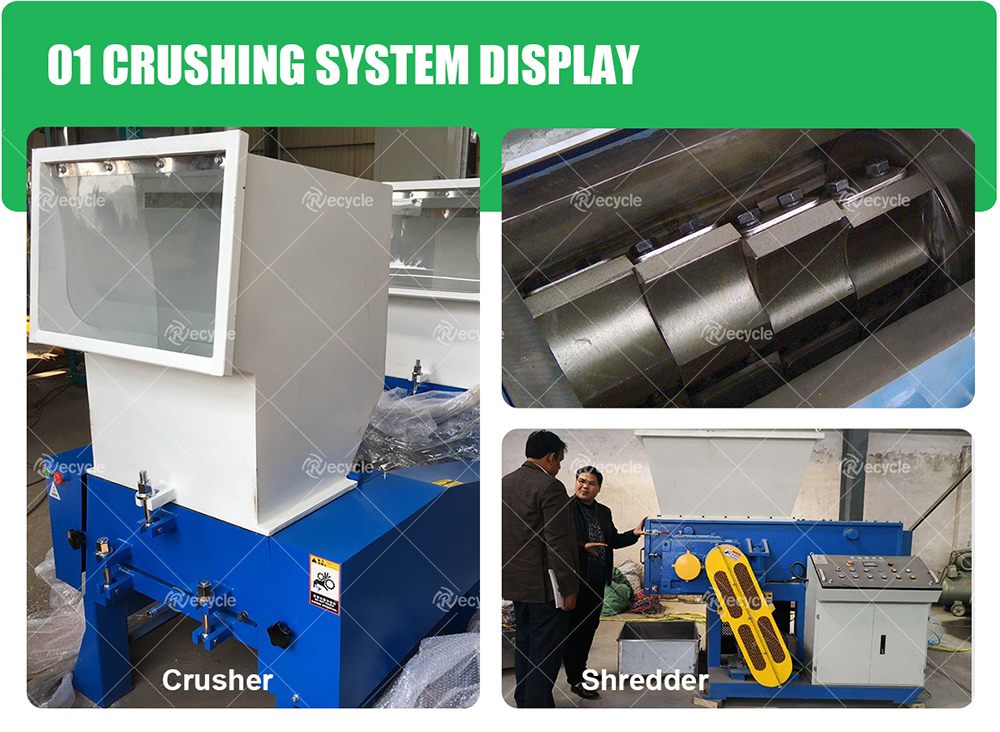

Product Details
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
Technical Parameters
Model
Capacity
Weight
Size (m)
Power
RSK-TMJ100
100-200kg/h
1850kg
2.2x2x2.3
28kw
RSK-TMJ300
200 300kg/h
2500kg
3.2x2.1x2.3
39kw
RSK-TMJ500
400-500kg/h
3850kg
6.2x5x3.3
68kw
RSK-TMJ800
700-800kg/h
5500kg
10.4x2.1x3.3
75kw
RSK-TMJ1000
800-1000kg/h
8200kg
12x4.1x4.5
95kw
Process Description
1. For the small capacity:
The cable wires raw materials can be put into the all-in-one machine directly, after crushing, it will use the Air separation system to make the copper and plastic suspended on the screen. Then it can separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh.
2. For larger capacity:

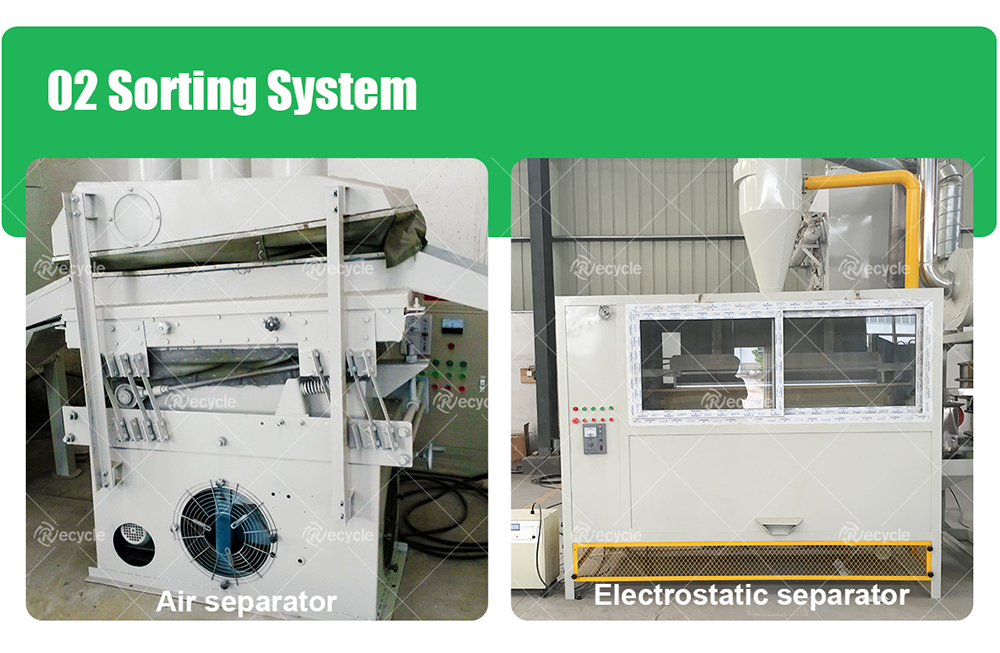

The cable wires raw materials will be firstly put into the shredder, then go into crusher to get the small pieces wires, then our pulse air separator machine will make the copper and plastic suspended on the screen to separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. This model system includes the first crusher, pulse air separator, dust and fiber collection system and high voltage electrostatic separator.
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine

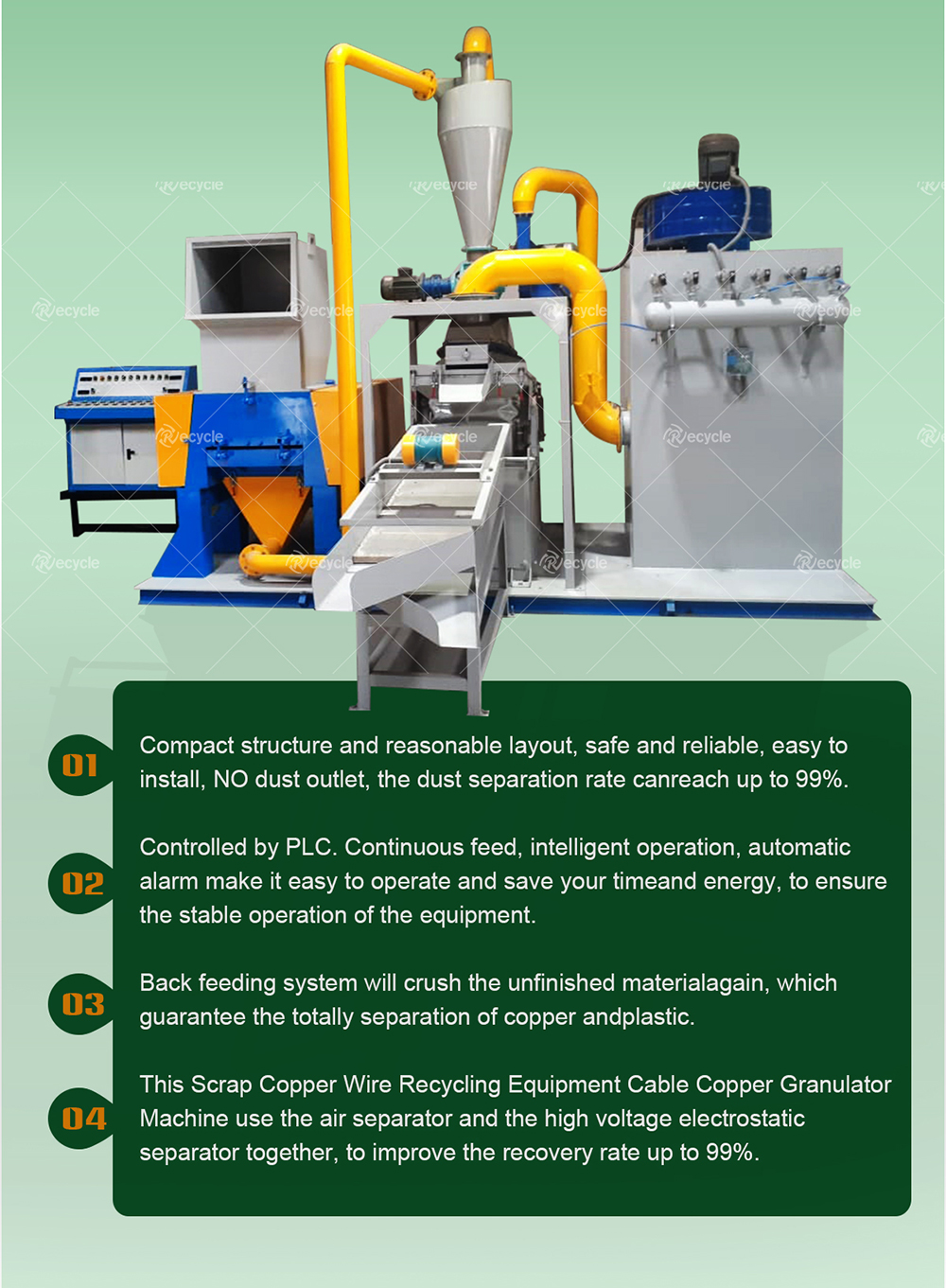

Product Features
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
Packing and Delivery
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
Quality Assurance
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
Company Show
As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.
We can dispatch engineers to overseas to help you with installation, training if you need.

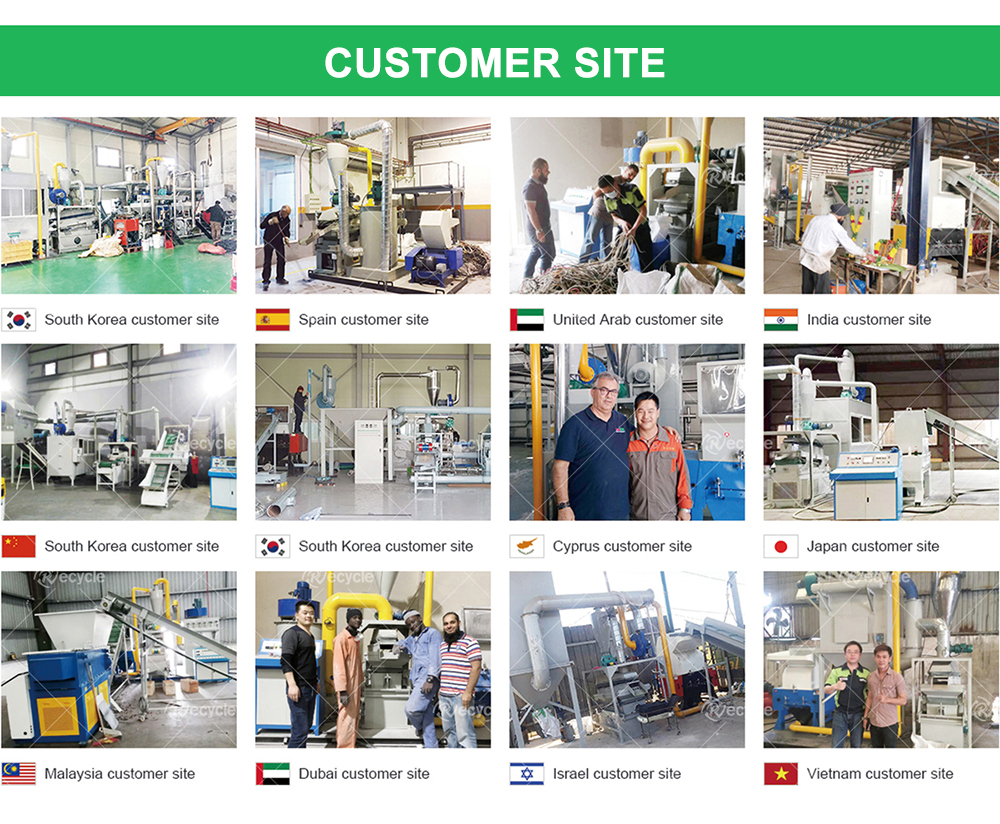

Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
Automatic Scrap Cable Recycling Machine 28KW-95KW Waste Cable Recycling Machine
